GATES & HARDWARE

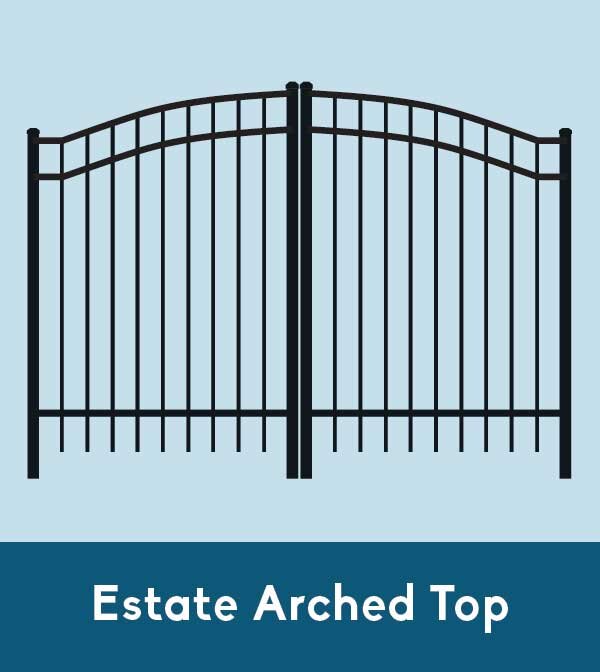

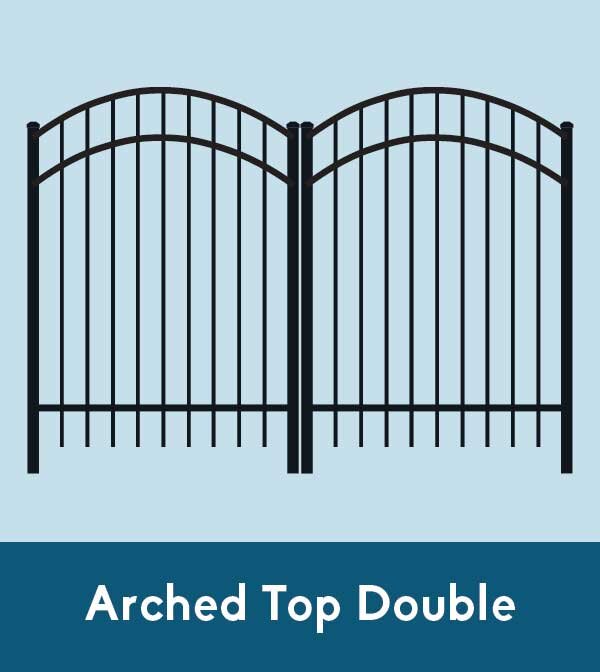

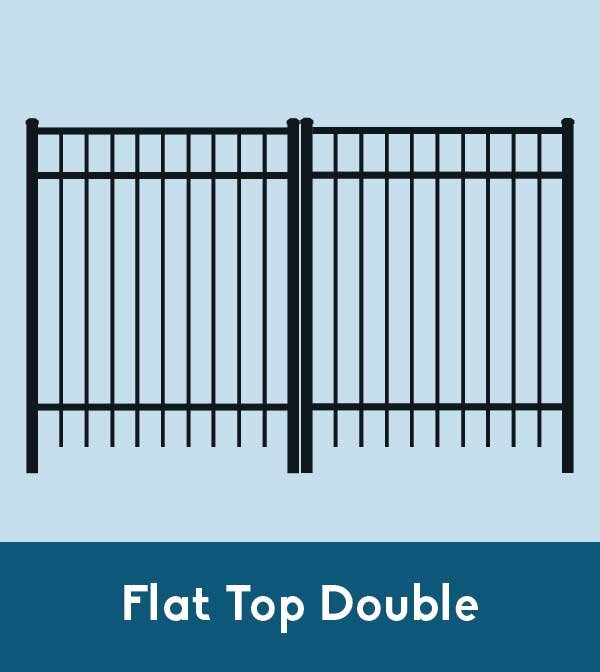

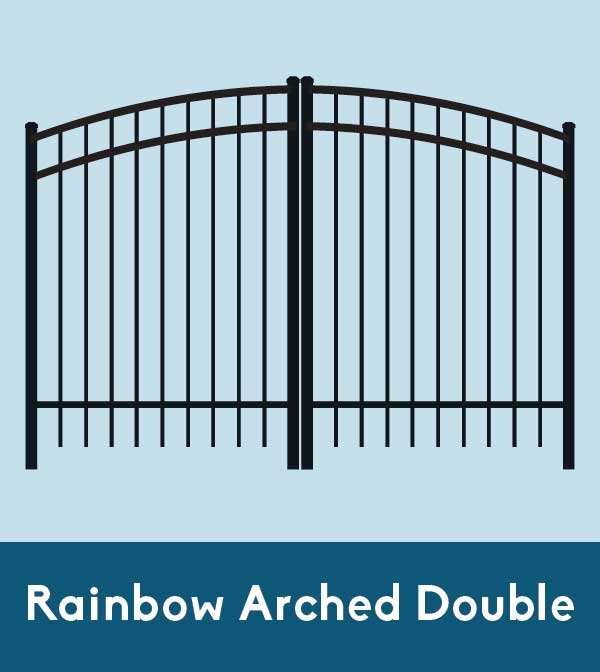

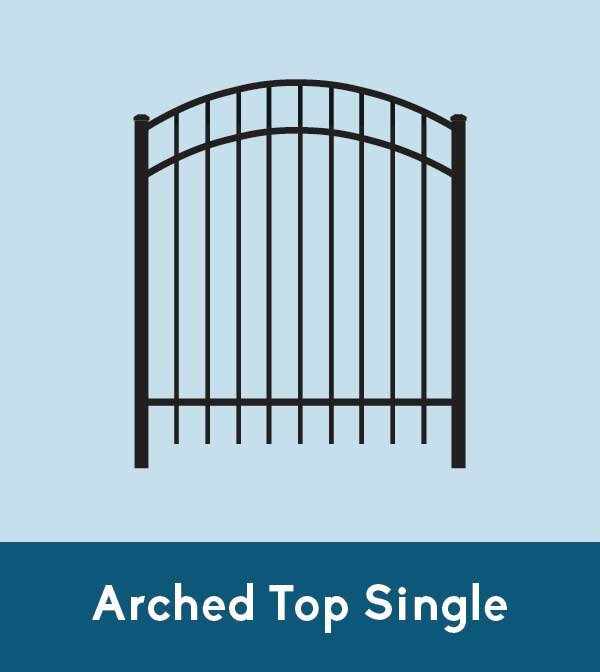

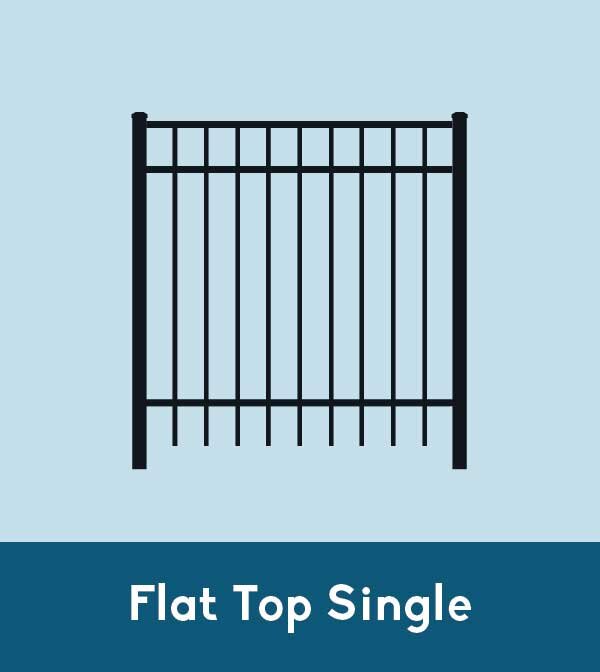

Coastal Aluminum offers several gate styles to complement our aluminum fencing product lines. All gates are available in single or double leaf construction, and in a flat-top or arched-top style (Wavecrest fencing is available with flat-top gates only). Custom colors and designs are available in all styles.

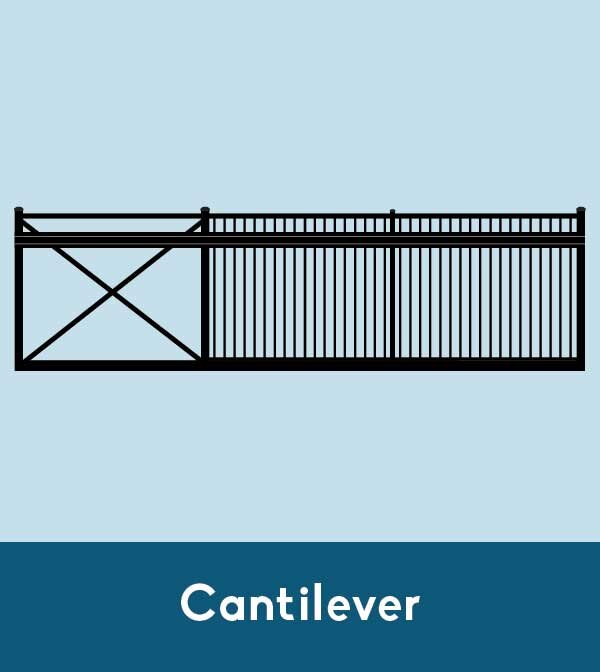

Single-leaf swing gates fit standard openings of 3’, 4’, 5’, and 6’. Double-leaf swing gates fit standard openings of 6’, 8’, 10’, and 12’. Custom sizes are available for residential, commercial, or industrial grades. Gates can be racked to your unique specifications. Cantilever gates are designed to meet a max opening of 30′ with the total gate width being 45′ including the counter balance.

Gate Components

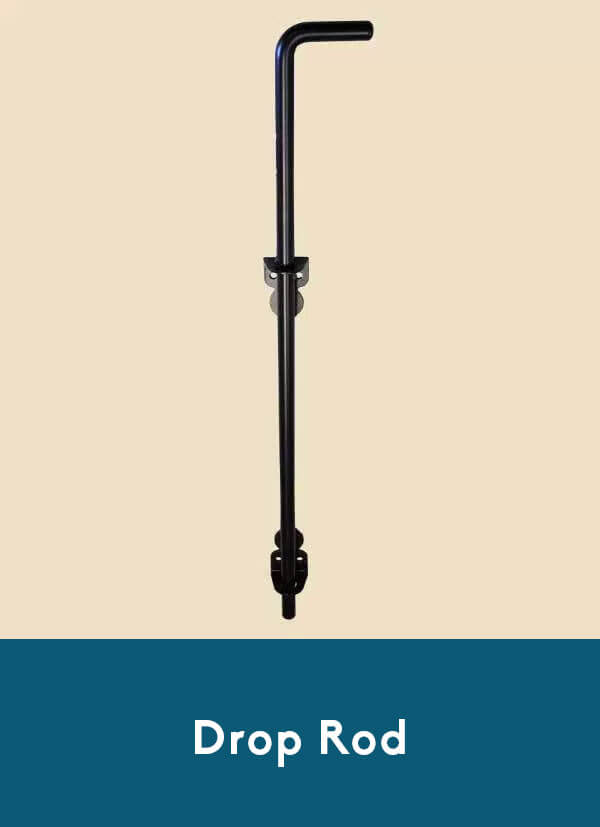

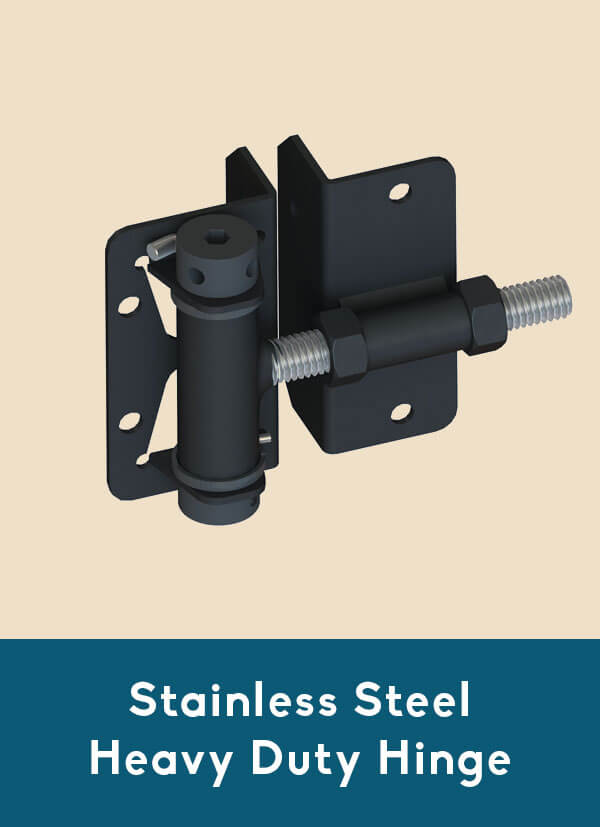

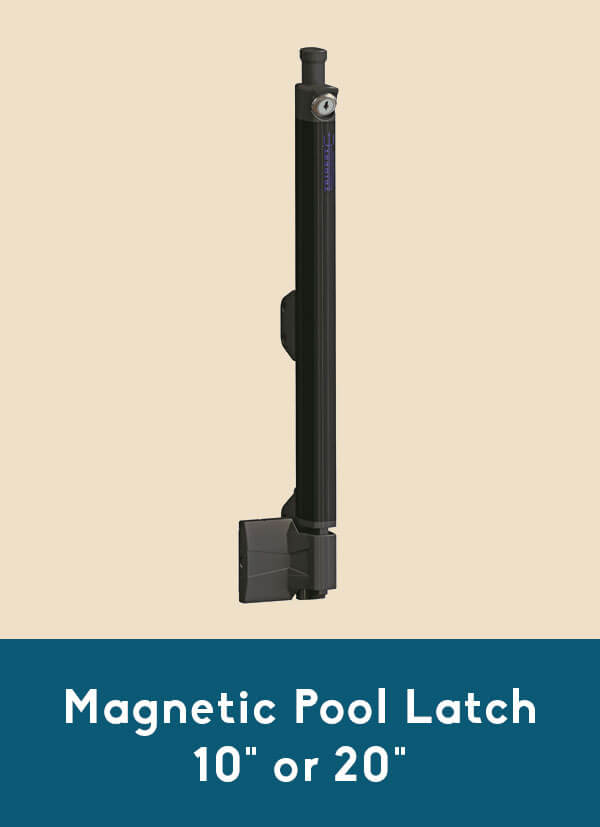

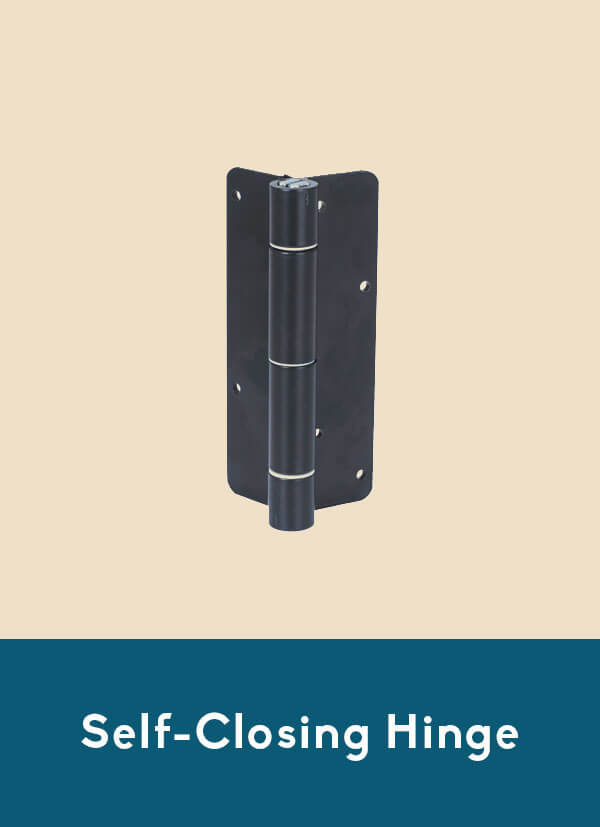

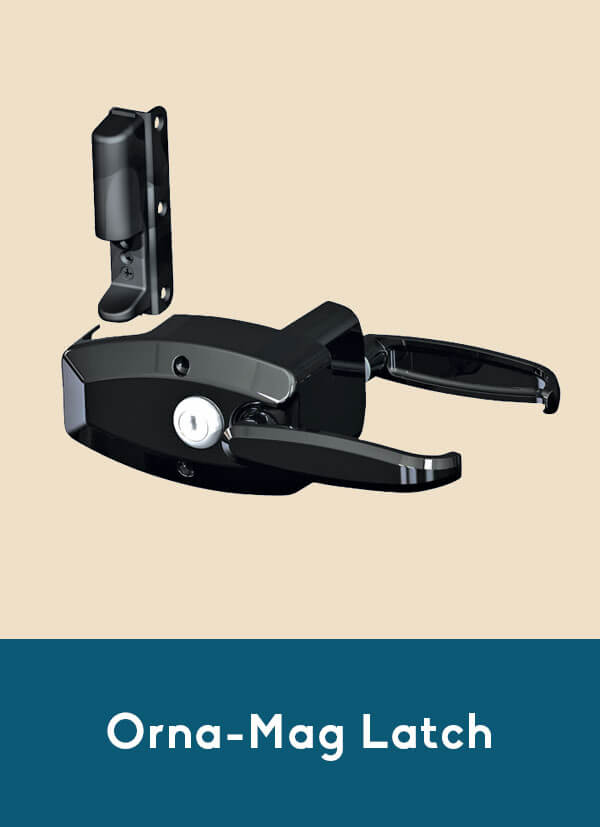

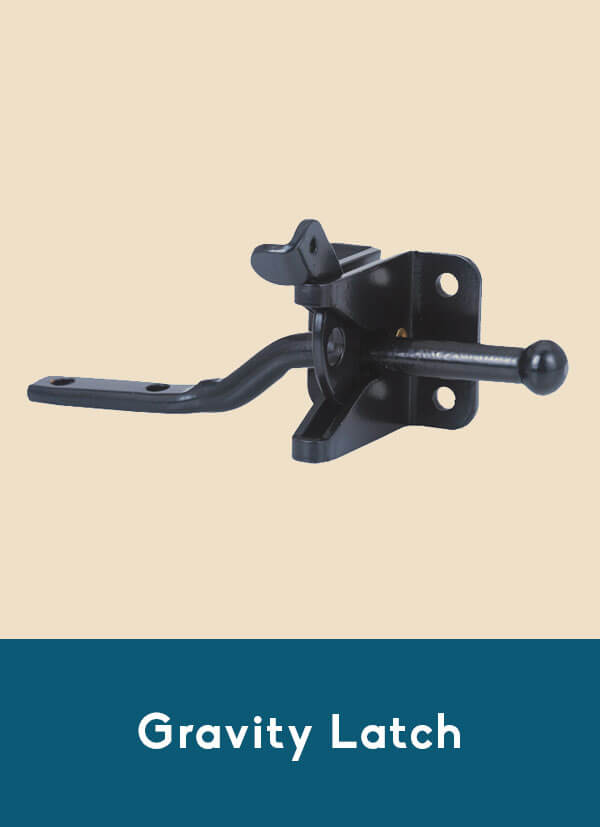

Self-closing hinges and a gravity latch are standard for all Coastal Aluminum fencing gates. A drop rod is also standard for double-leaf gates. A magnetic safety latch option is available.

Gate Support

2-Rail Gates:

• 3′-4′ wide gates will get NO bracing
• 5′ wide gates will get corner gussets

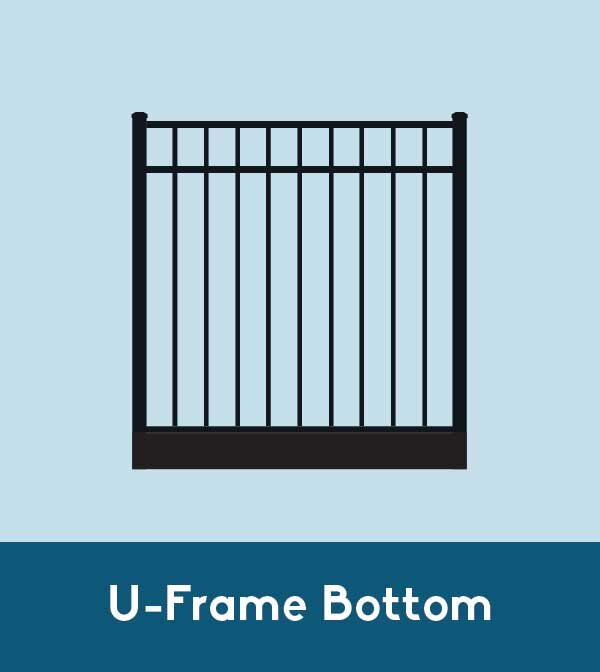

• 6′ wide & up gates will get U-Frame bottom

3-Rail & 4-Rail Gates:

• 3′-4′ wide gates will get NO bracing
• 5′ wide gates will get corner gussets
• 6′ wide & up gates will get cross bracing
