Wilmington Vinyl Semi-Privacy Fence

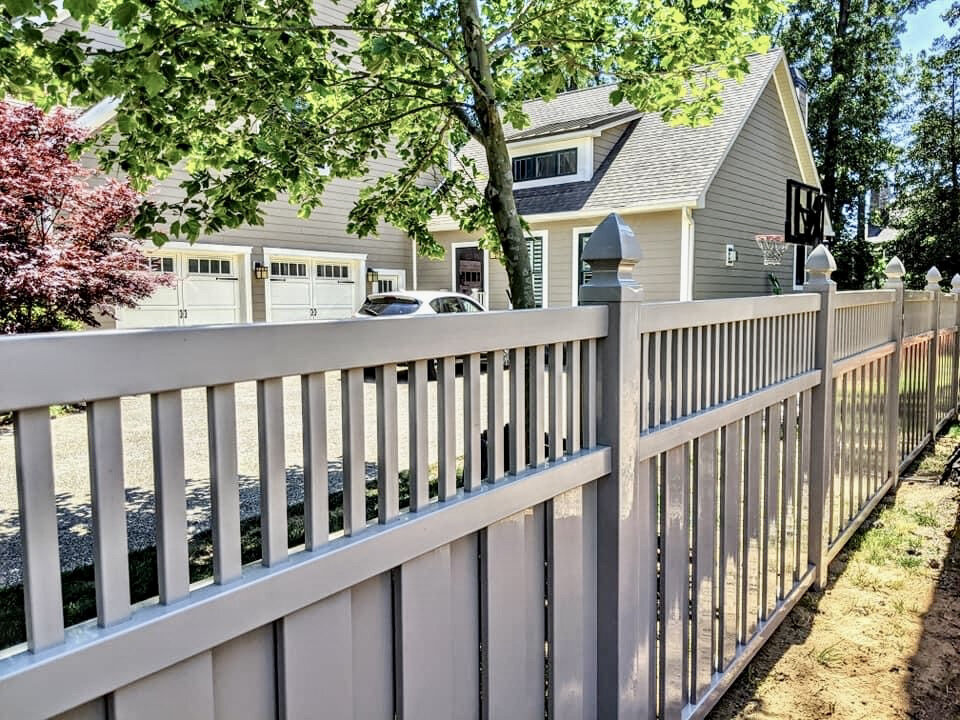

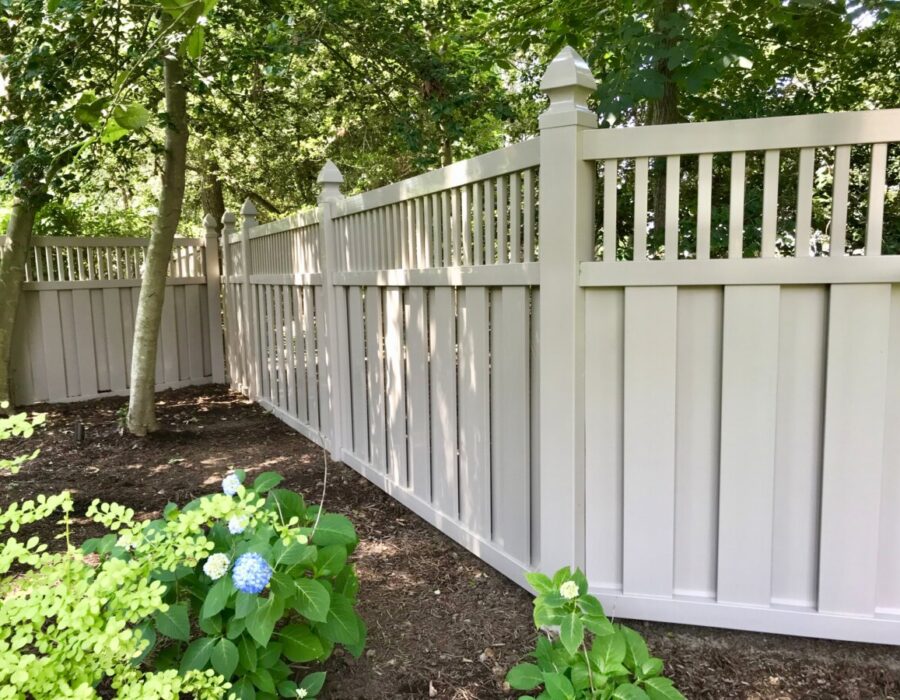

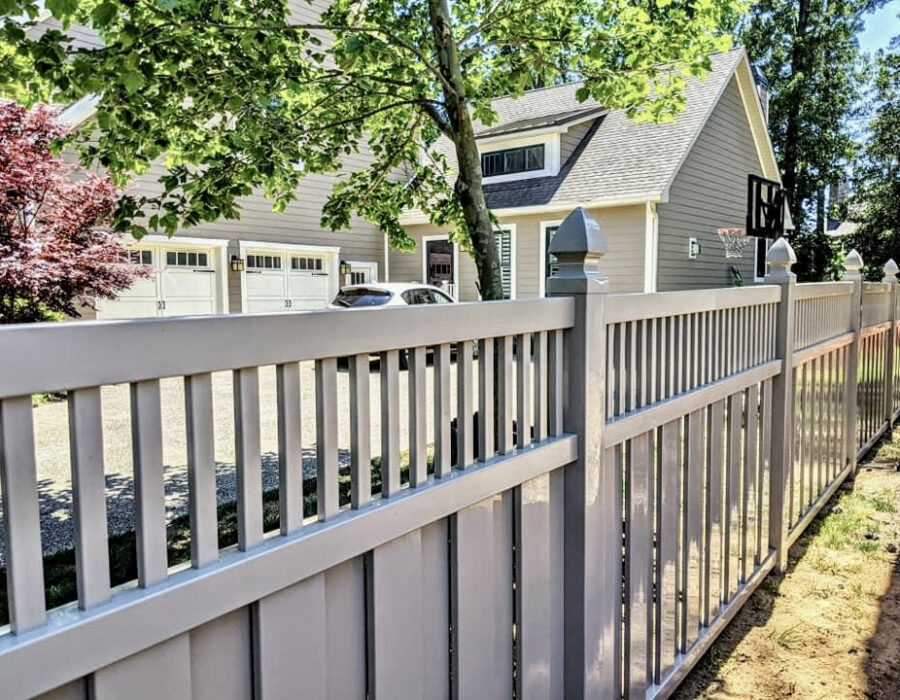

The Wilmington vinyl semi-privacy fence is constructed in a shadow-box style with two offsetting rows. This design allows air to flow through the pickets while providing a high level of privacy. The top of the Wilmington panel incorporates accent pickets that add an elegant design element. Available heights range from 3-feet to 8-feet. Panels are available in 6-foot and 8-foot widths.

Rail Options

Wilmington has a 2″ x 3-1/2″ top rail &  3″ x 3″ middle & bottom rails. Bottom rails are aluminum reinforced.

A second 3″ x 3″ mid-rail is required on 7′ & 8′ high Wilmington fences.

Pickets

Wilmington uses 7/8″ x 6″ ribbed pickets & has board on board spacing. Accent pickets are 7/8″ x 1-1/2″.

Color Options

Fence posts, rails, & pickets are available in all of the colors listed.  Choose the same color posts, rails, & pickets for a traditional look.  Or, try a two-toned look by mixing & matching available colors for the posts, rails, & pickets.

Wilmington Semi-Privacy Fence Specifications

Heights 3’, 4’, 5’, 6’, 7’, & 8’
Widths 6’ & 8’ wide panels
Posts 5” x 5”
Colors White, Almond, & Khaki
Pickets 7/8” x 6” Ribbed
Accent top pickets are 7/8” x 1-1/2”
Spacing Board on Board
Rails 2” x 3-1/2” top rail
3” x 3” mid-rail
3” x 3” second mid-rail on 7′ & 8’ high fences
3” x 3” bottom rail with aluminum insert for reinforcement
